Evacuation Plan / Diagrams

Evacuation Diagrams or Evacuation Plans  for all workplace or activity centres are compulsory under Australian Standard AS3745-2010 in all states and territories of Australia.

As with any standard these can be confusing and take up your valuable time to implement.

This is where Pacific Signage can bring our expertise to help your organisation achieve legal compliance and relieve the burden.

Our own in house dedicated designers will guide you through and design a compliant solution.

Some of our clients:

  1. Hospitals

  2. Schools

  3. Colleges

  4. Aged care facilities

  5. Engineering

  6. Manufacturing

  7. Child care centres

  8. Restaurants

  9. Sporting clubs

How Pacific Signage creates your Fire and Safety Services your Evacuation Diagrams:

  1. We will audit your plans to evaluate your requirements (site visit may be required however unlikely), ensuring the Australian Standards and relevant building codes are adhered to

  2. Recommend the number of Evacuation Diagrams required and most importantly placement within the buildings and other areas

  3. We can customise the display of your diagrams options:

    1. High quality printing in A2, A3 or A4 size

    2. Laminating or framing using aluminium clip or perspex to match your buildings décor

    3. Print to Aluminum or Acrylic

    4. Alternatively, we can provided the diagrams in PDF

  4. We make sure your diagrams comply with OH&S legislation and Australian Standard AS3745-2010

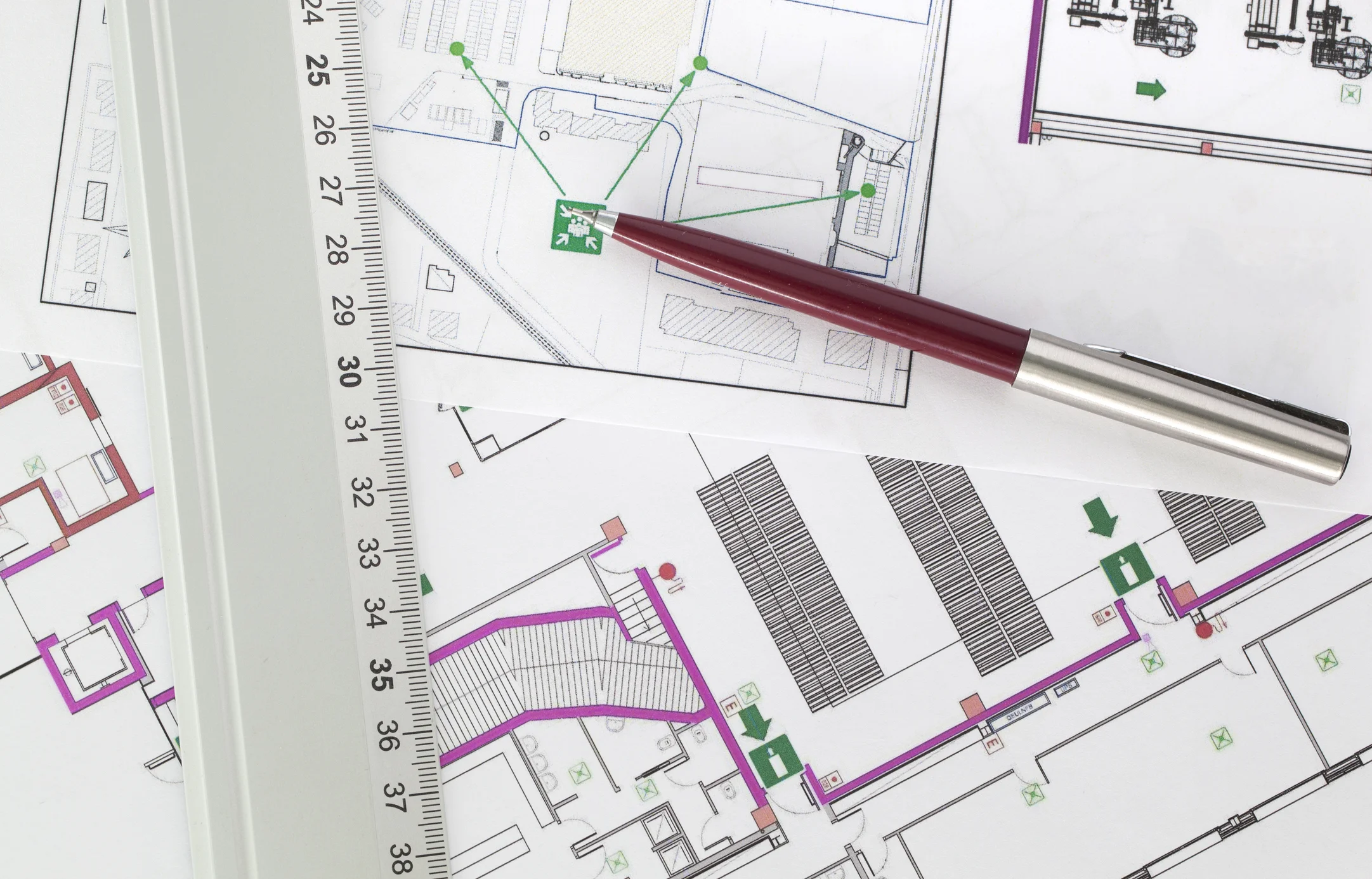

The diagrams produced will include:

  1. “YOU ARE HERE” location

  2. Designated exits

  3. Paths of travel to designated exits

  4. Direction of door openings

  5. Warden intercommunication points, manual and emergency call points

  6. Main controls/panels for any installed occupant warning system

  7. Hose reels, hydrants, fire extinguishers and fire blankets as applicable

  8. Fire indicator panel if installed

  9. Appropriate legend

  10. Evacuation diagram validity date

  11. Assembly area location

  12. Standard evacuation instructions

Cost:

$45.00 per diagram Ex GST

Quote can be supplied and cost reduces with quantity needed.

Various treatments and mounting can be quoted.

Note: Additional charge of $75.00 per hour will be charged if site visit is required

Delivery:

Metro FREE

Installation $75.00 per site however quoted on a per job basis

Email us your building plan and we can send you obligation free quotes on creating your Evacuation Diagrams.
